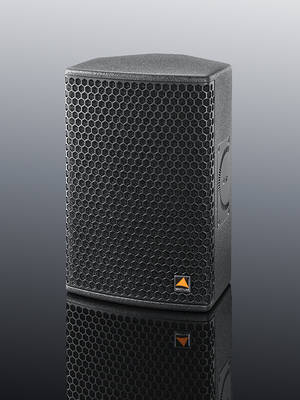

WestLab LABRAT eight

In der aktiven Version wartet die „eight“ mit einem intern verbauten DSP und zwei Amps auf.

Techspecs:

Dimensions
390 x260 x 258 mm
Net Weight
11,1 kg
TotalSystem Power (RMS/Peak)
450/800
Crossover Type
Digital IIR - Filter (Internal, 5 Presets)
Max. SPL (program)
121 db
Max SPL (peak)
127 db
Frequency Range (-6 dB)
62 - Hz - 20,5 Khz
Crossover Frequency
1,27 Khz
Directivity (horizontal x vertical)
100° x 100° (1Khz - 20Khz)
Low Frequency Driver Chassis type
Cone driver, port loaded
Low Frequency Driver Magnet
Neodynium
Low Frequency Driver Chassis diameter
8“ / 205 mm
Low Frequency Driver Voicecoil diameter
2“ / 50,8 mm
High Frequency Driver Chassis type
Coaxial ringradiator compression driver
High Frequency Driver Magnet
Neodynium
High Frequency Driver Chassis diameter
1“ /25,4 mm
High Frequency Driver Voicecoil diameter
1,75“ /44,4 mm
